This guide is divided into two major segments:
  • Adding the Experro Extension to Magento
  • Configuring the Magento–Experro Integration

​
1. Adding the Experro Extension to Magento

​
Overview

In this section, you will add the Experro extension to your Magento installation. Follow these steps carefully to ensure that the module is correctly installed and visible in the Magento Admin panel.

​
Prerequisites

  • Ensure that you have already downloaded the Experro Connector ZIP file to your server.
  • Contact the Experro Support Team if you do not have the required file.

​
Installation Steps

1

Extract the Experro Connector Module Files

Extract the ZIP folder into the Magento root directory at the following path:
MagentoRoot/app/code
2

Verify the Folder Structure

Confirm that the extracted folder structure appears as:
MagentoRoot/app/code/Experro/Connect
3

Run Magento Compilation Commands

Open your terminal in the Magento root directory and execute the following commands one by one:
php bin/magento setup:upgrade
php bin/magento setup:di:compile
php bin/magento setup:static-content:deploy -f
php bin/magento indexer:reindex    # Only if required
php bin/magento cache:clean
php bin/magento cache:flush
chmod 777 -R var pub generated
4

Module Confirmation

Once the installation is complete, log in to your Magento Admin panel. You should see the Experro module logo in the left sidebar. To verify connectivity, navigate to:
Admin > Experro > System Status

​
2. Configuring the Magento–Experro Integration

​
Prerequisites

  • Ensure that you have already uploaded the Experro Connector ZIP file to your server as shown in the previous section.

​
Integration Steps

1

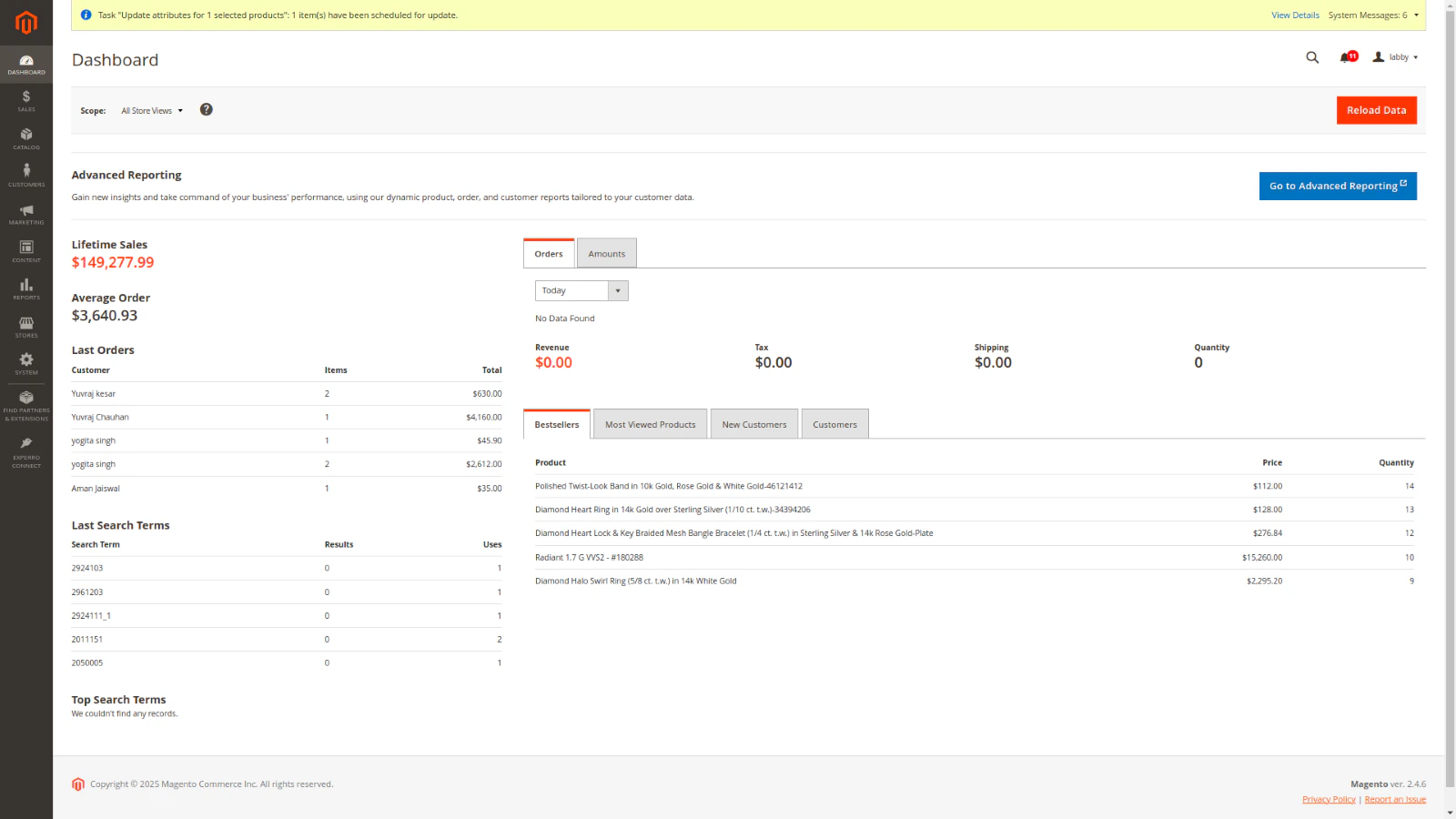

Magento Admin Access

  • Log in to the Magento Admin panel.
  • Navigate to Experro Connect.
2

Experro Admin Configuration

  • Log in to the Experro Admin panel.
  • Navigate to the Platform section.
  • Select Install Magento Integration.

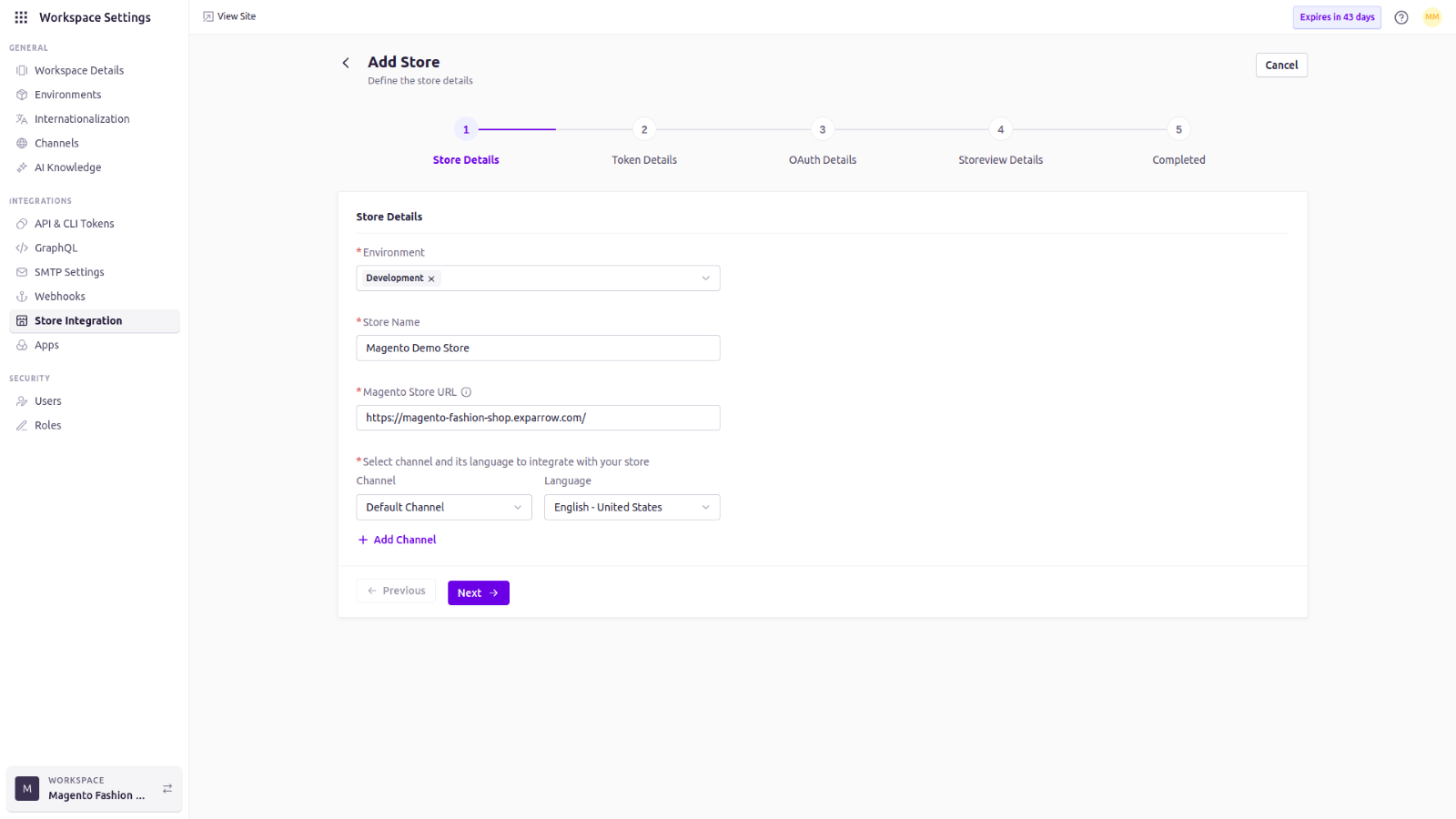

  • Click Add Store and fill in the required details (Environment, Store name, Magento store URL, Channel, and Language).
  • Click Next.
3

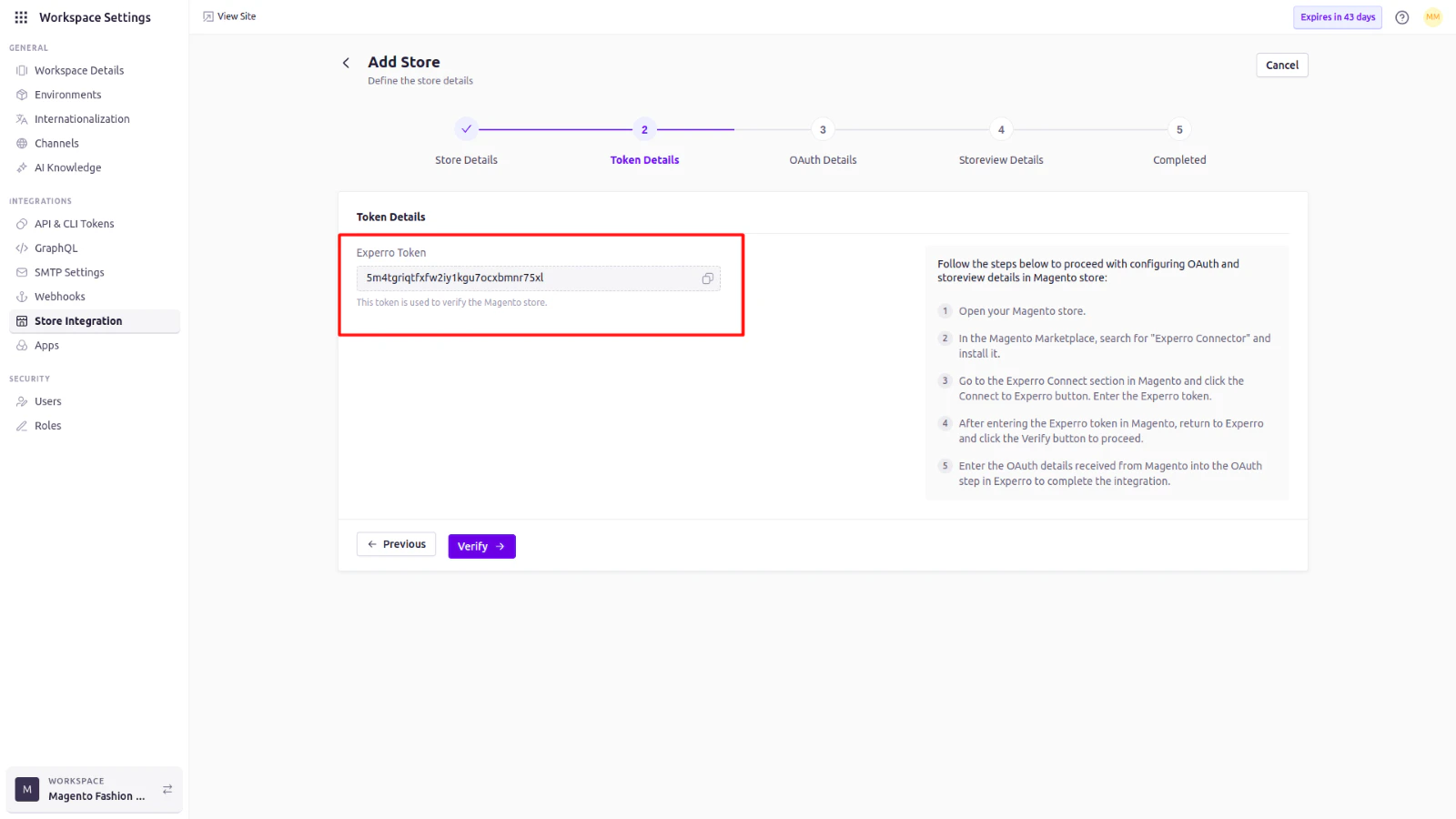

Copy Experro Token

  • The system will redirect you to a new page displaying the Experro token.
  • Copy the displayed token.
4

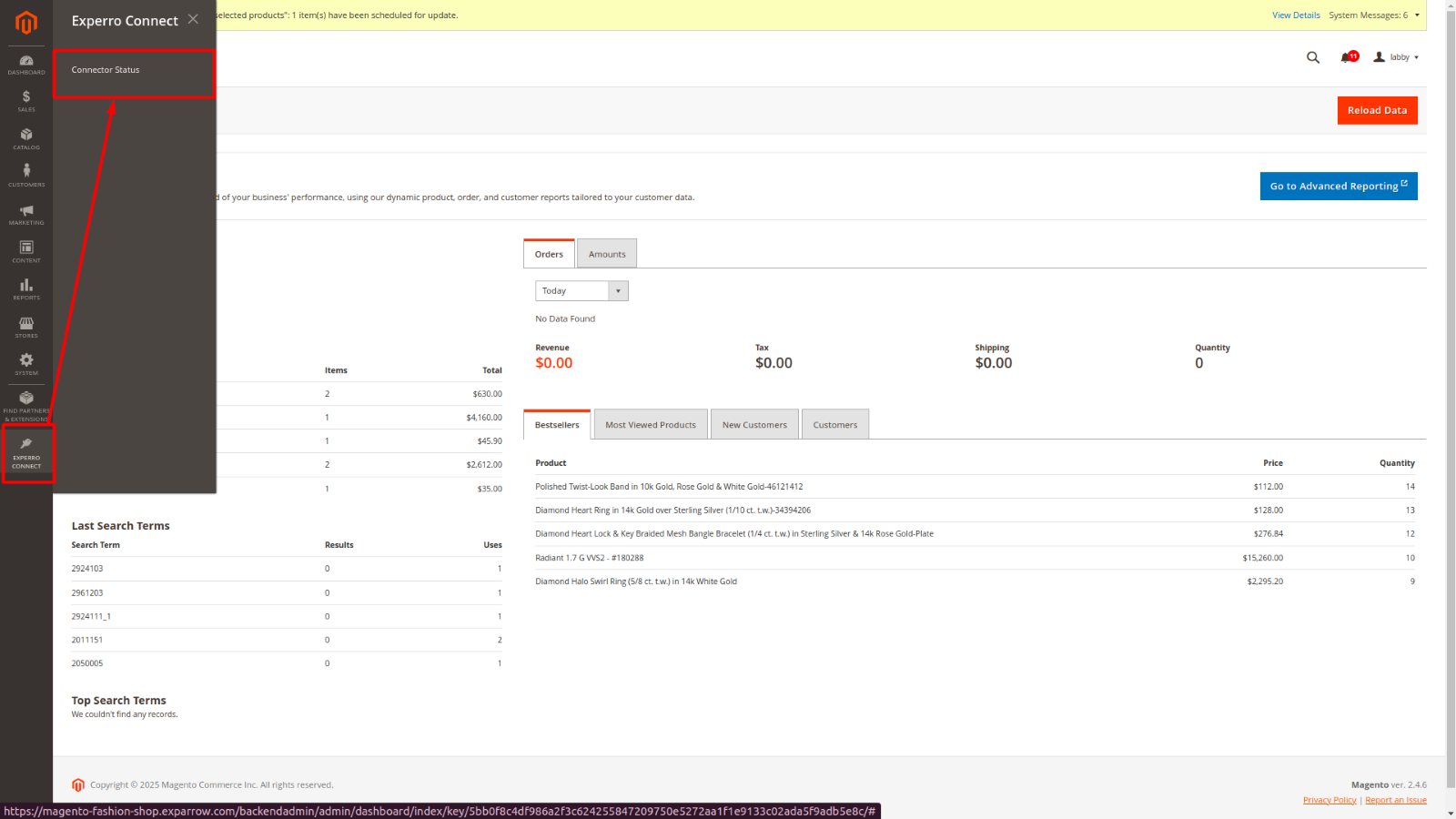

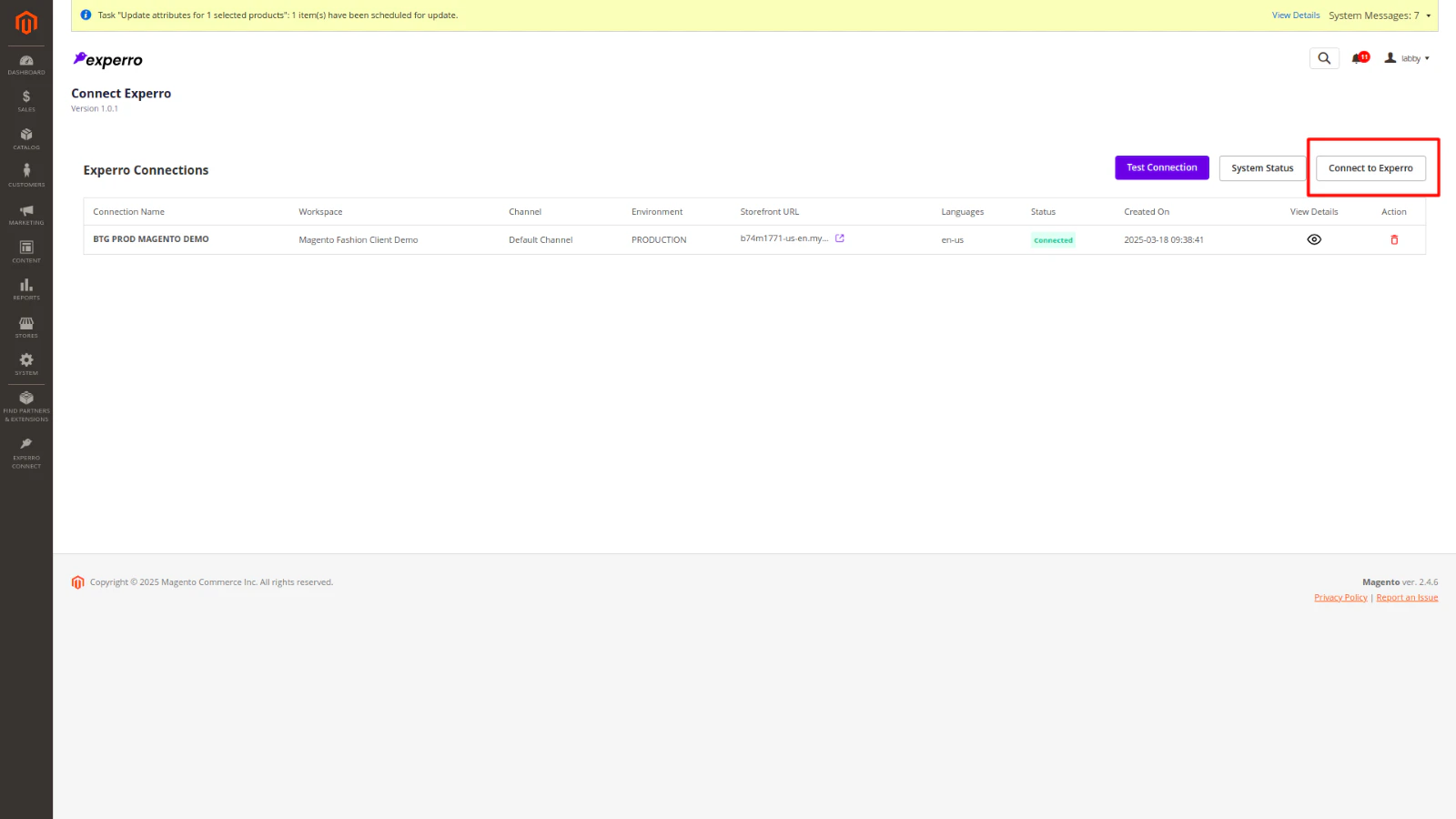

Connect to Experro from Magento

  • Return to the Magento Admin panel.
  • Click on the Connect to Experro button.
5

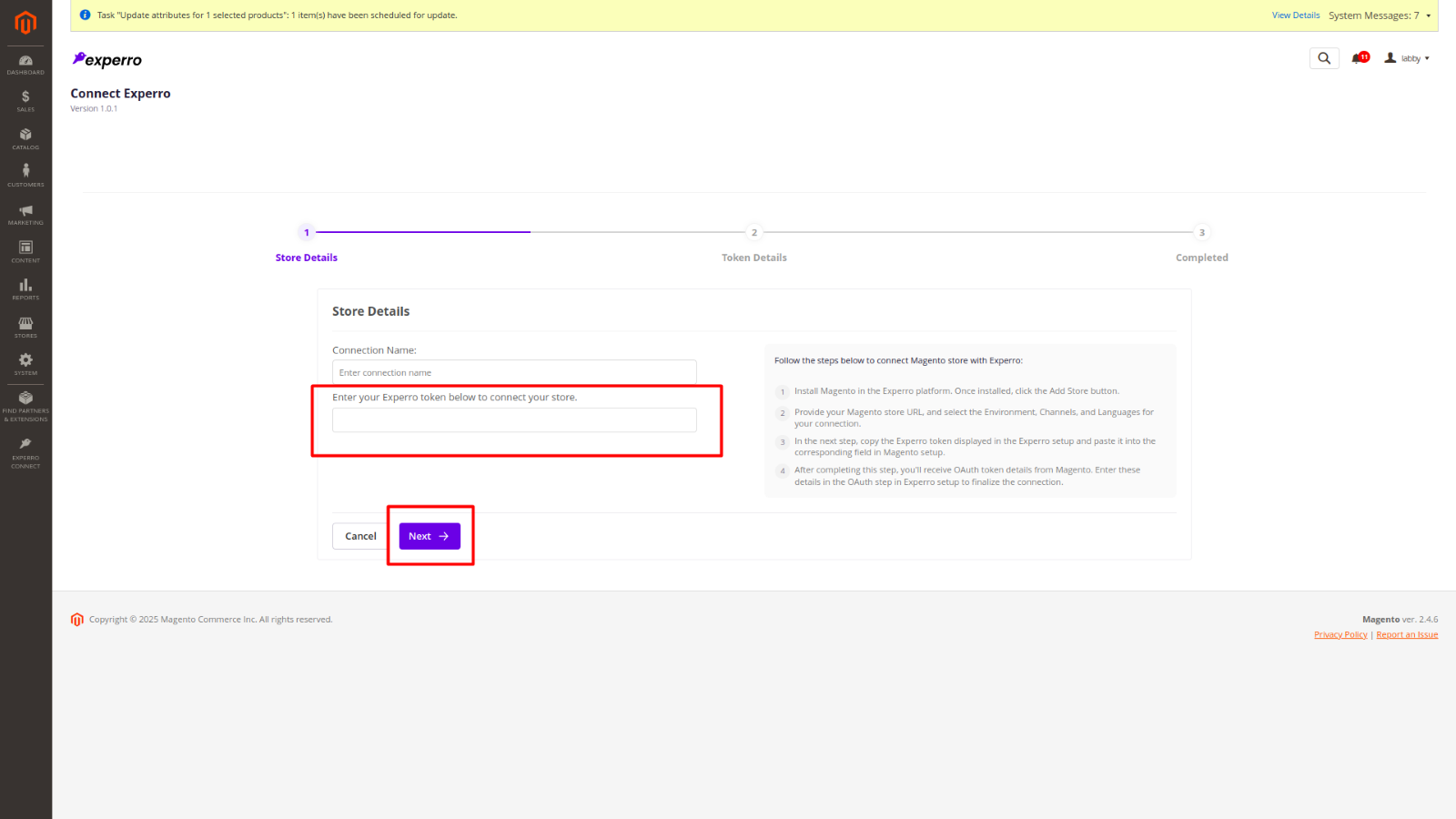

Enter Connection Details

  • You will be redirected to a connection form.
  • Paste the Experro token (copied earlier) and fill in the other required details.
  • Click Next.
6

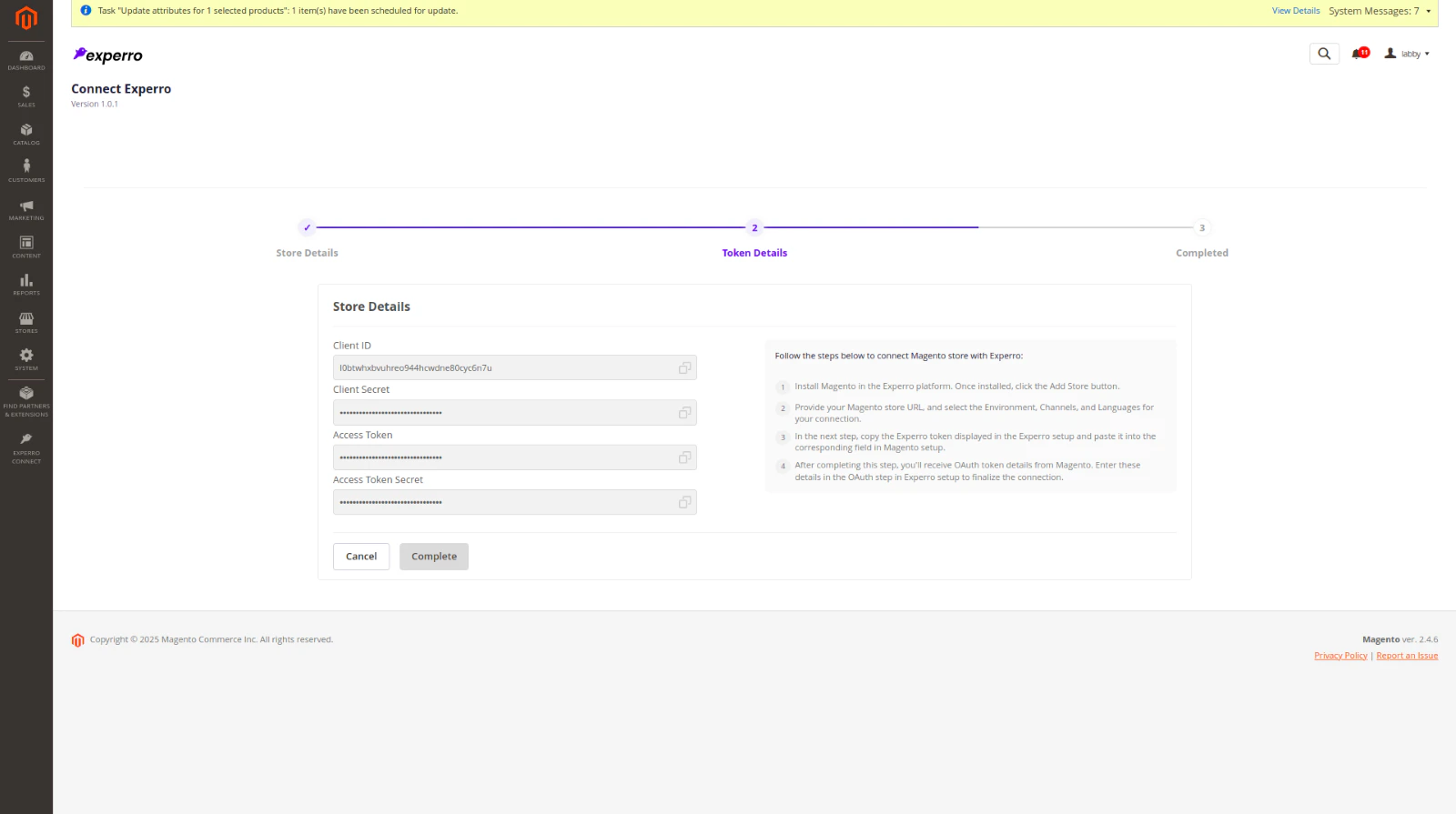

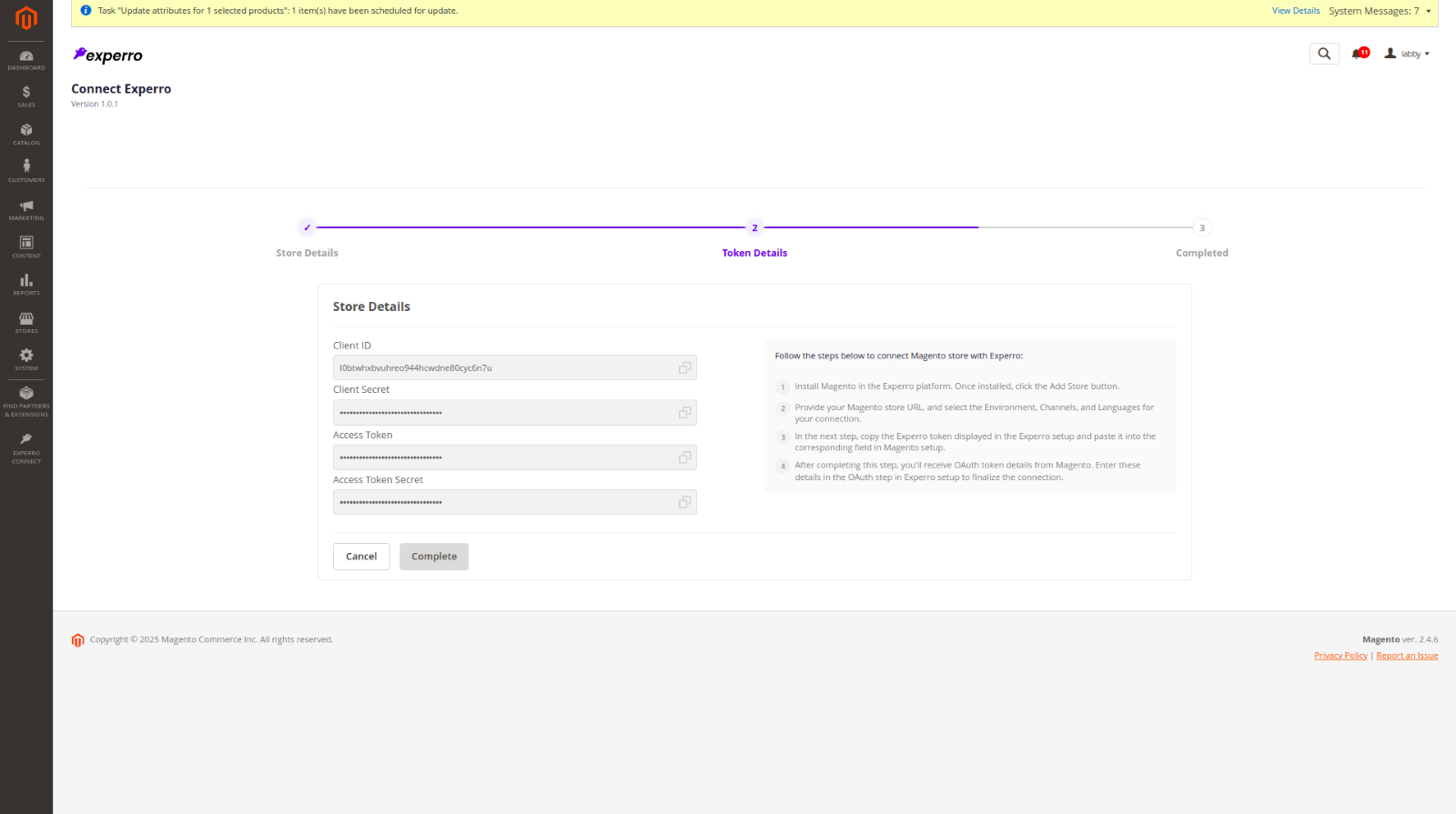

Store Details Page

  • The store details page will now be displayed in Magento.
7

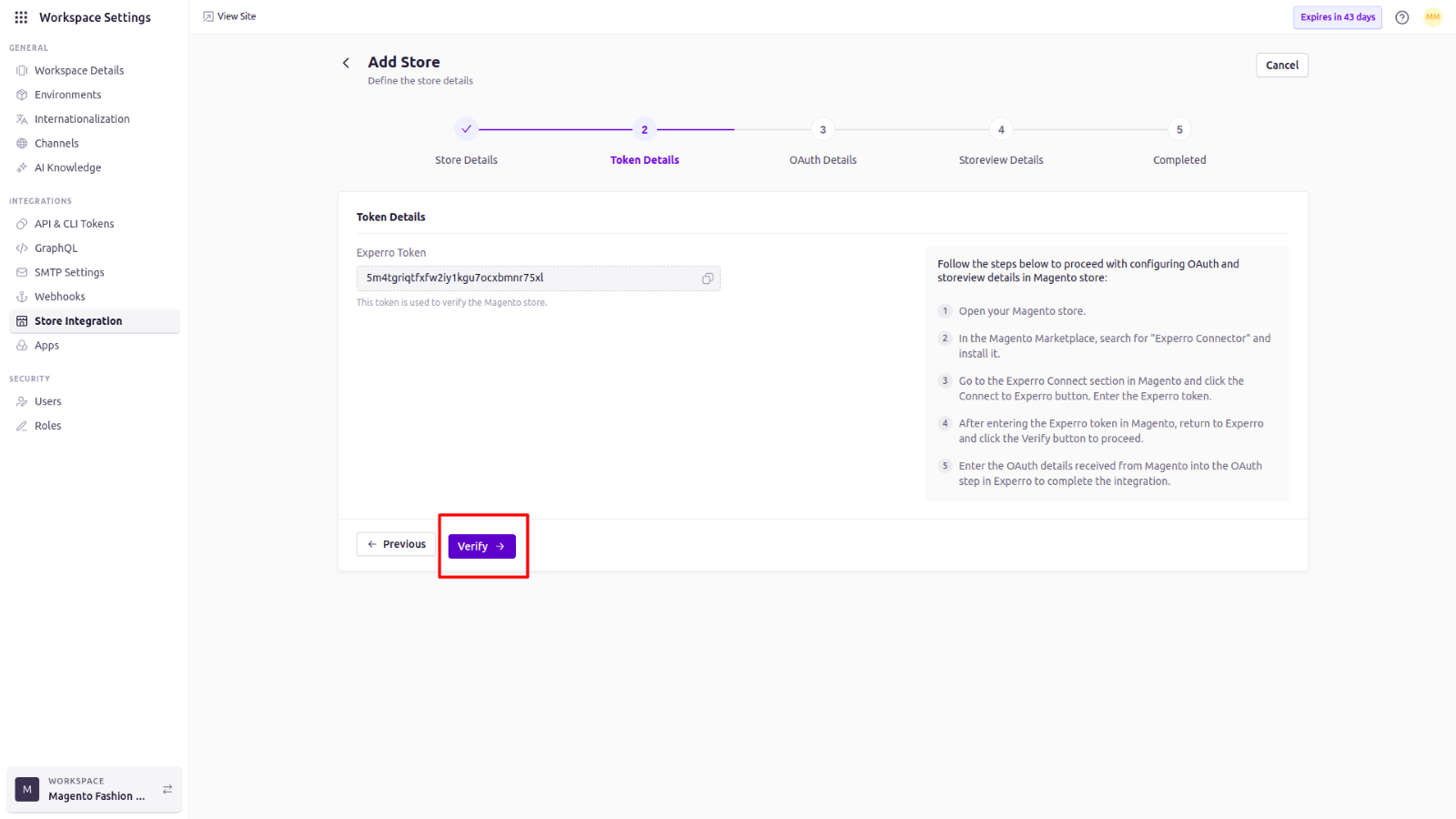

Verification

  • Navigate to Experro, and click the Verify button.
8

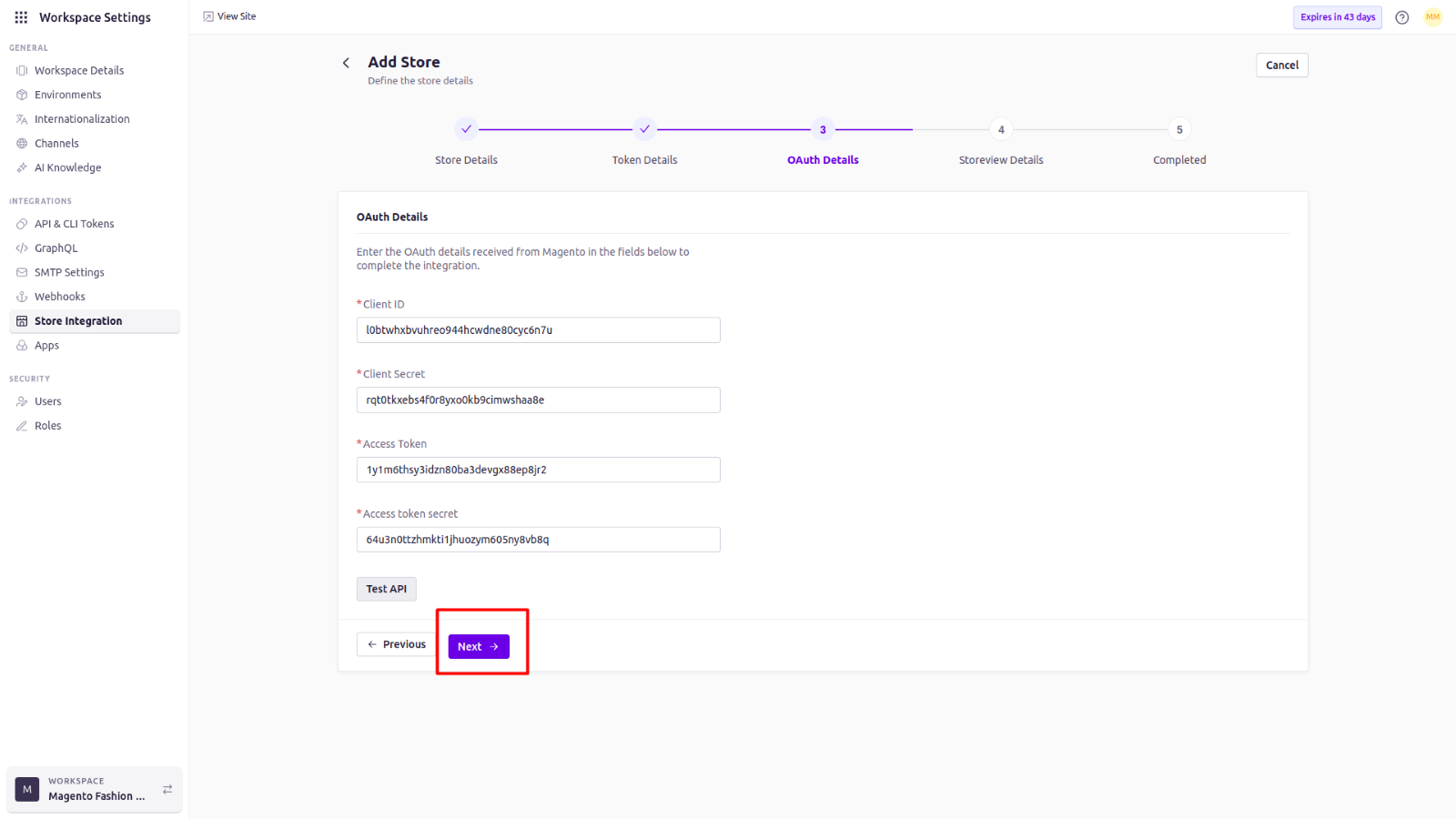

OAuth Details Configuration

  • After clicking Verify, you will be redirected to the OAuth Details page.
  • Copy the store details information from the Magento Admin panel into the respective fields.
  • Click Next.
9

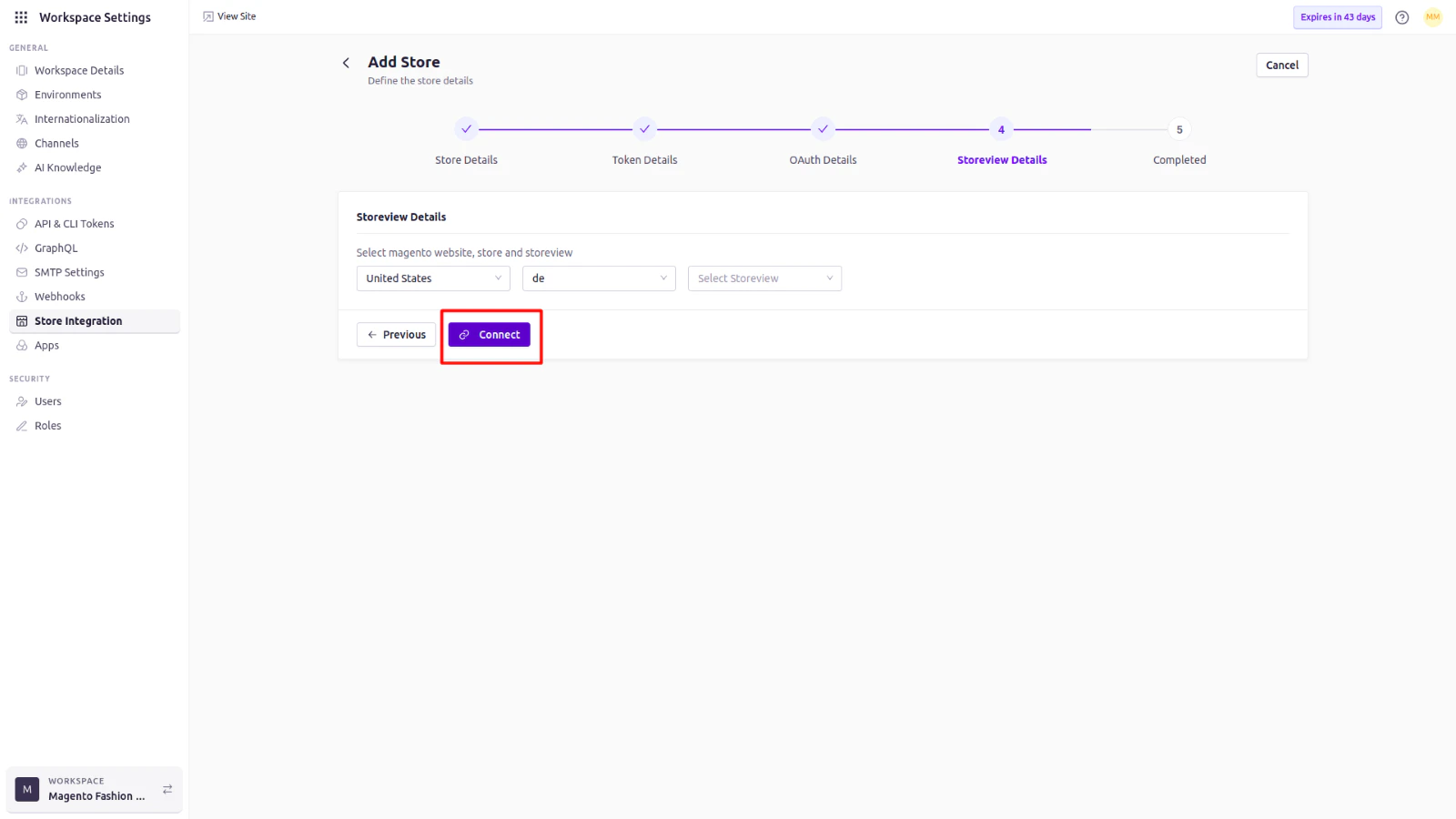

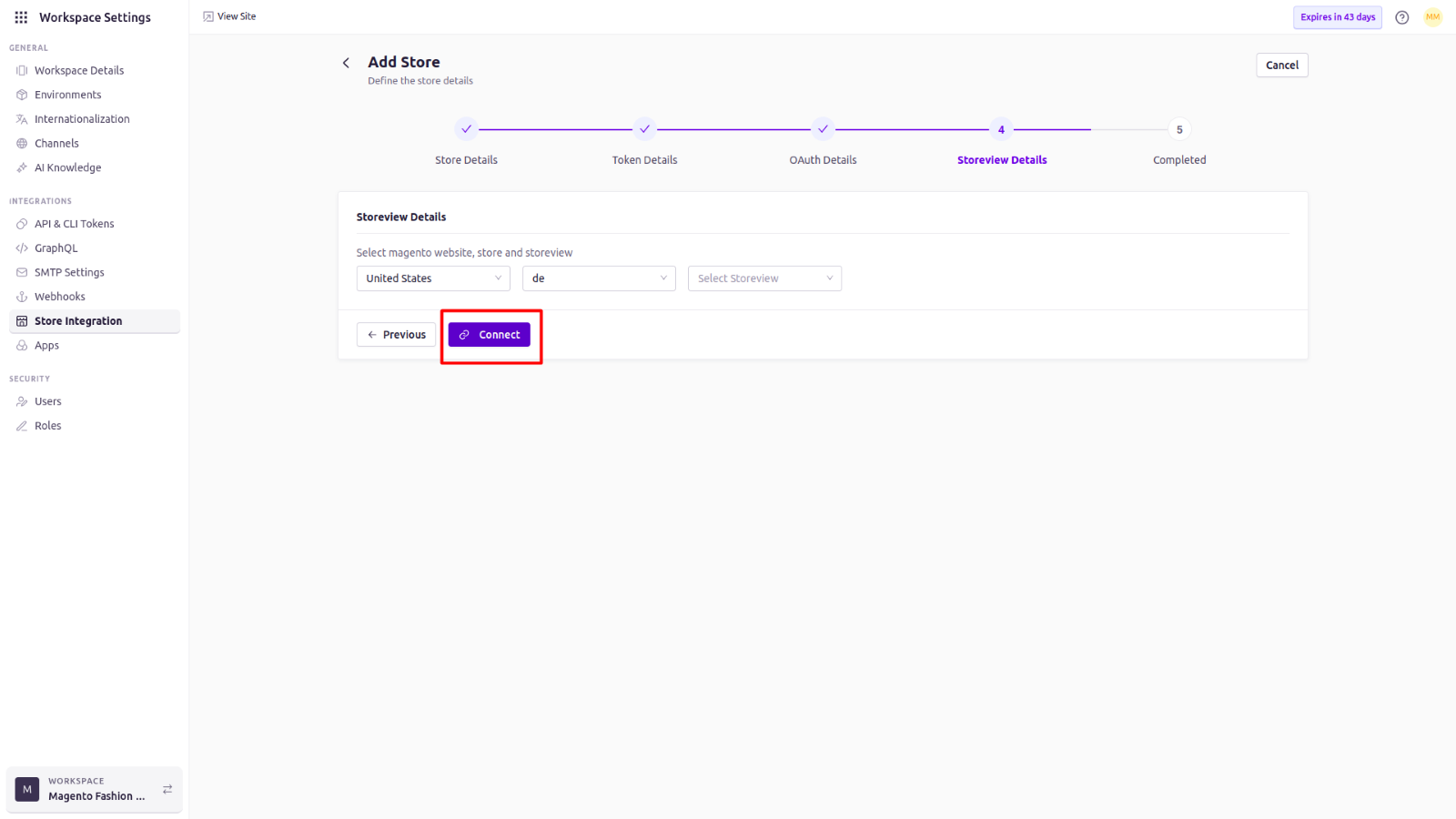

Final Storeview Configuration

  • Complete the final details on the Storeview Details page.
  • Click Connect.
  • You should see a confirmation message:
    Store added successfully
  • The system will then redirect you to the store listing page, where your newly added store will be displayed.
This guide should help you smoothly integrate Magento with Experro.
